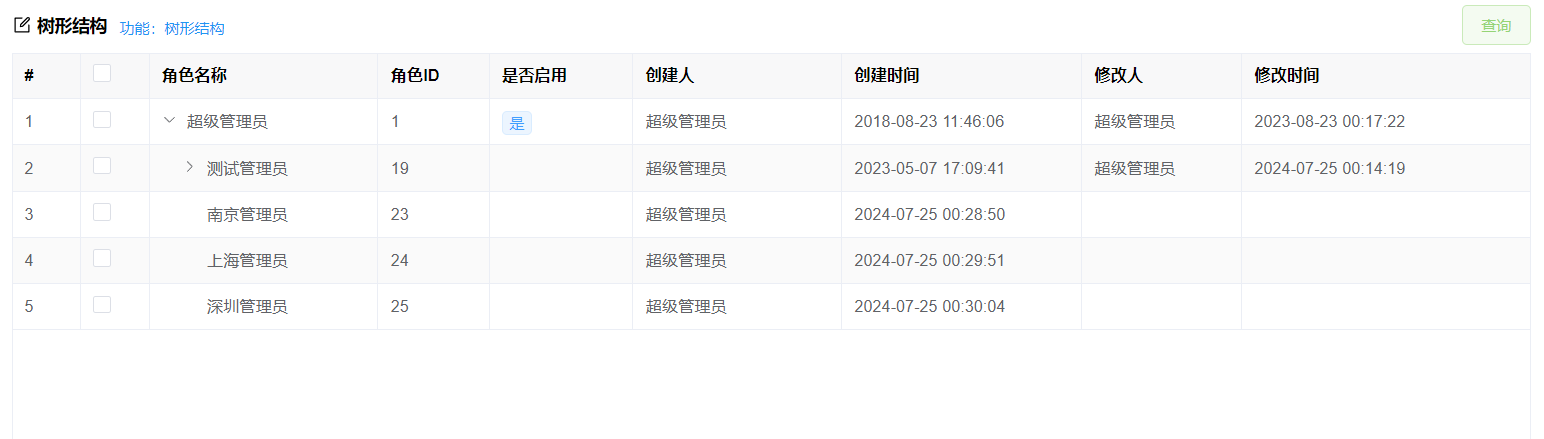

1.功能：树形结构
2. 预览地址
查看代码
前端代码
<template>
<div class="table-item">
<div class="table-item-header">
<div class="table-item-border"></div>
<vol-title icon="edit" title="树形结构"> 功能：树形结构</vol-title>
<div class="table-item-buttons">
<el-button type="primary" @click="search" color="#95d475" plain>查询</el-button>
</div>
</div>
<!-- 如果是手动绑定table数据，见：【基础表格+事件处理】-->
<!--
lazy：是否懒加载，如果需要显示所有数据不延迟加载，请将lazy设置为false,去掉loadTreeChildren,并且后台返回全部数据
rowKey：主键字段
rowParentField：父级id字段
defaultExpandAll：默认展开所有节点，lazy=false时生效
expandRowKeys：默认展开的行数据主键id，lazy=false时生效
:expandRowKeys="[1]" 指定展开固定id的节点，1为要展开的id
-->
<vol-table
:lazy="true"
rowKey="Role_Id"
rowParentField="ParentId"
@loadBefore="loadBefore"
@loadAfter="loadAfter"
:defaultExpandAll="false"
:expandRowKeys="[1]"
:loadTreeChildren="loadTreeChildren"
ref="tableRef"
:url="url"
index
:columns="columns"
:height="maxHeight"
:pagination-hide="false"
:ck="true"
:column-index="true"
></vol-table>
</div>
</template>
<script lang="jsx" setup>
import VolTable from "@/components/basic/VolTable.vue";
import { ref, reactive, getCurrentInstance } from "vue";
const { proxy } = getCurrentInstance();
const tableRef = ref();
//接口返回数据，可以框架生成的接口getPageData
//如果是自定义的接口，需要返回的数据格式：{total:100,rows:[]}
const url = ref("api/sys_role/getPageData");
//计算表格高度
const maxHeight = ref(0);
maxHeight.value = document.body.clientHeight - 250;
/***延迟加载子节点数据，见Sys_RoleController.cs文件***/
const loadTreeChildren = (tree, treeNode, resolve) => {
//加载子节点
let url = `api/Sys_Role/getTreeTableChildrenData?roleId=${tree.Role_Id}`; //Role_Id换为表的主键字段
proxy.http.post(url, {}).then((result) => {
resolve(result.rows);
});
};
const loadBefore = (params, callBack) => {
//调用后台接口前处理
//设置查询条件
callBack(true); //false不会调用后台接口
};
//查询后方法
const loadAfter = (rows, callBack, result) => {
callBack(true);
};
const search = () => {
tableRef.value.load(null, true);
proxy.$message.success("查询成功");
};
const columns = reactive([
{ field: "RoleName", title: "角色名称", width: 140 },
{ field: "Role_Id", title: "角色ID", width: 70 },
{
field: "Enable",
title: "是否启用",
bind: { key: "enable", data: [] },
width: 90,
},
{ field: "Creator", title: "创建人", width: 130 },
{
field: "CreateDate",
title: "创建时间",
width: 150,
},
{
field: "Modifier",
title: "修改人",
width: 100,
},
{
field: "ModifyDate",
title: "修改时间",
width: 180,
},
]);
</script>
<style lang="less" scoped>
.table-item-header {
display: flex;
align-items: center;
padding:6px 0;
.table-item-buttons {
flex: 1;
text-align: right;
}
}
</style>
后台接口代码
//后台代码见：Sys_RoleController.cs文件(Sys_RoleController改为你当前表的Controller)
public partial class Sys_RoleController
{
private readonly ISys_RoleService _service;//访问业务代码
private readonly ISys_RoleRepository _repository;
private readonly IHttpContextAccessor _httpContextAccessor;
[ActivatorUtilitiesConstructor]
public Sys_RoleController(
ISys_RoleService service,
ISys_RoleRepository repository,
IHttpContextAccessor httpContextAccessor
)
: base(service)
{
_service = service;
_repository = repository;
_httpContextAccessor = httpContextAccessor;
}
/// <summary>
/// treetable 获取子节点数据(2021.05.02)
/// </summary>
/// <param name="loadData"></param>
/// <returns></returns>
[ApiActionPermission(ActionPermissionOptions.Search)]
[HttpPost, Route("GetPageData")]
public override ActionResult GetPageData([FromBody] PageDataOptions loadData)
{
return GetTreeTableRootData(loadData).Result;
}
/// <summary>
/// treetable 获取一级(根)节点数据
/// </summary>
/// <returns></returns>
[HttpPost, Route("getTreeTableRootData")]
[ApiActionPermission(ActionPermissionOptions.Search)]
public async Task<ActionResult> GetTreeTableRootData([FromBody] PageDataOptions options)
{
//页面加载根节点数据条件x => x.ParentId == 0,自己根据需要设置
var dbServiceId = UserContext.CurrentServiceId;
var query = _repository.FindAsIQueryable(x => x.ParentId == 0 || x.Role_Id == 1);
var queryChild = _repository.FindAsIQueryable(x => true);
var rows = await query.TakeOrderByPage(options.Page, options.Rows)
.OrderBy(x => x.Role_Id).Select(s => new
{
s.Role_Id,
s.ParentId,
s.RoleName,
s.DeptName,
s.Dept_Id,
s.Enable,
s.CreateDate,
s.Creator,
s.Modifier,
s.ModifyDate,
s.OrderNo,
s.DatAuth,
hasChildren = queryChild.Any(x => x.ParentId == s.Role_Id)
}).ToListAsync();
return JsonNormal(new { total = await query.CountAsync(), rows });
}
/// <summary>
///treetable 获取子节点数据
/// </summary>
/// <returns></returns>
[HttpPost, Route("getTreeTableChildrenData")]
[ApiActionPermission(ActionPermissionOptions.Search)]
public async Task<ActionResult> GetTreeTableChildrenData(int roleId)
{
//点击节点时，加载子节点数据
var roleRepository = Sys_RoleRepository.Instance.FindAsIQueryable(x => true);
var query = roleRepository.Where(x => x.ParentId == roleId);
if (AppSetting.UseDynamicShareDB)
{
query = query.Where(x => x.DbServiceId == UserContext.CurrentServiceId);
}
var rows = await query
.Select(s => new
{
s.Role_Id,
s.ParentId,
s.RoleName,
s.DeptName,
s.Dept_Id,
s.Enable,
s.CreateDate,
s.Creator,
s.Modifier,
s.ModifyDate,
s.OrderNo,
s.DatAuth,
hasChildren = roleRepository.Any(x => x.ParentId == s.Role_Id)
}).ToListAsync();
return JsonNormal(new { rows });
}
}
